OTSO WARAKIN STAINLESS STEEL FRAMESET All Road Bike Sepeda Gravel - 52
OTSO WARAKIN STAINLESS STEEL FRAMESET All Road Bike Sepeda Gravel - 52
Regular price
Rp 28.499.900,00
Regular price
Rp 28.499.900,00
Sale price
Rp 28.499.900,00
Unit price
per
Couldn't load pickup availability
ANY SURFACE. EVERY SURFACE!
From pavement and cobbles to dirt and gravel, Warakin was designed to go just about anywhere.

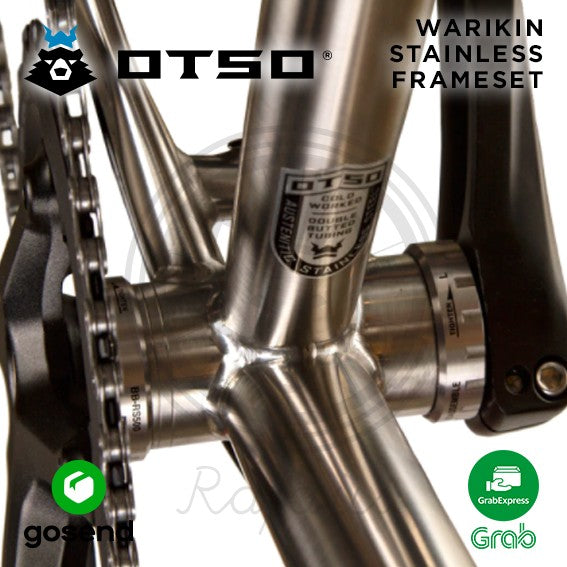

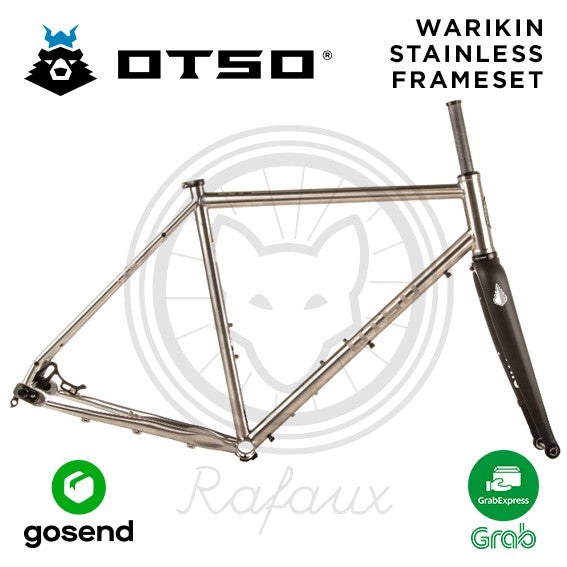

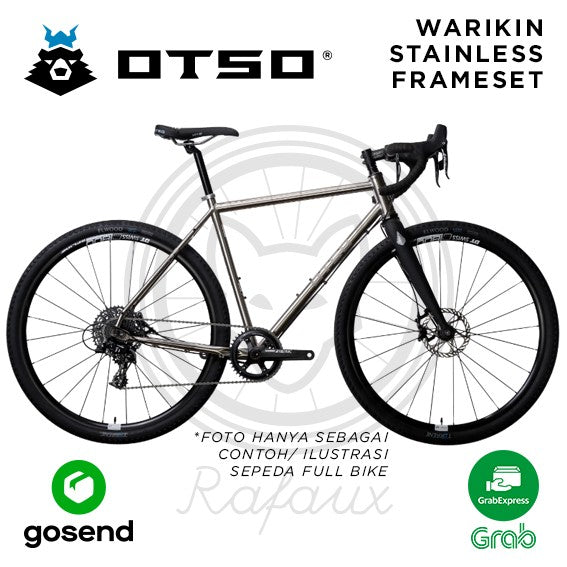

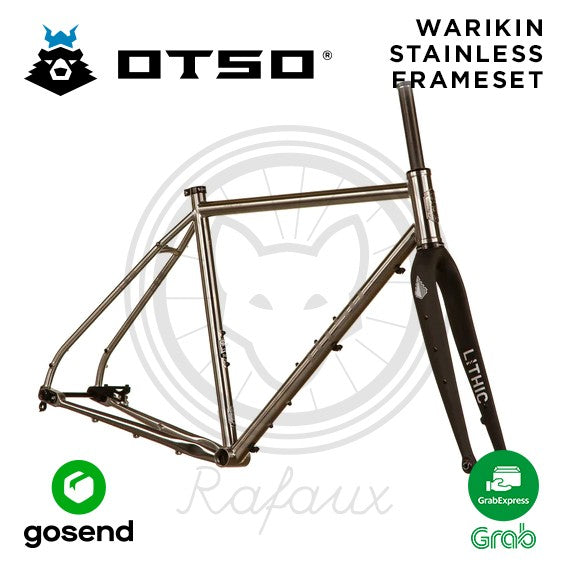

Warakin is an all-road adventure bike. The frame is built using austenitic stainless steel tubing and features a brushed finish with bead-blasted graphics. Austenitic stainless steel provides the supple yet lively ride quality of a cromoly frame with the beauty and corrosion resistance of titanium.
Size 52
TT 530
Seat Tube 505
Stack 549
Reach 378
WB 1017-1037
Frameset Ready di Toko
Frame Specs
BB 68mm BSA threaded
Q-factor 146mm with Shimano RS510 crankset
Maximum chainring size 2x 53T round; 1x 50T round or 46T oval
FD type 31.8mm clamp, bottom pull
Headset ZS44/28.6 upper, EC44/40.0 lower
Seatpost diameter Ø27.2mm
Internal dropper post routing Yes. Exit port on bottom of seat tube
Seatpost clamp Ø31.8mm
Front/rear hub standard 100x12mm thru axle / 142x12mm thru axle
Front/rear axle Ø12x125mm front, TP=1.5, TL=15mm / Ø12x180mm rear, TP=1.5, TL=12mm
RD hanger Wolf Tooth Tuning Chip Right Dropout
Rear Front brake (rotor) Flat mount, 74mm post mount available(160mm)
Fork axle-to-crown 420mm
Fork offset 47mm
Bare frame weight (54cm) 4.7lbs (2120g)
Fork weight (Lithic Hiili) 490g
Tire clearance (frame) 40mm at 420mm chainstay position, 50mm at 430/440mm chainstay position
Tire clearance (fork) Max clearance 29x2.1" (54-622)
Braze-ons 3 bottle mounts, fender, rack, cable clamps
Happy Gowes
Salam Sukses Sehat Selalu
Terima kasih
