OTSO

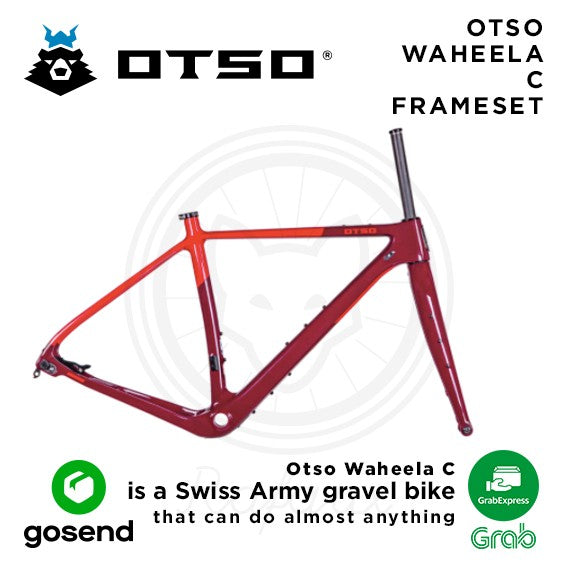

OTSO WAHEELA C Frameset Only BURGUNDY RED - MEDIUM
OTSO WAHEELA C Frameset Only BURGUNDY RED - MEDIUM
Regular price
Rp 38.500.000,00
Regular price
Sale price
Rp 38.500.000,00
Unit price
per
Couldn't load pickup availability
OTSO
Waheela C
THE ULTIMATE GRAVEL MACHINE
VERSATILITY MEETS PERFORMANCE

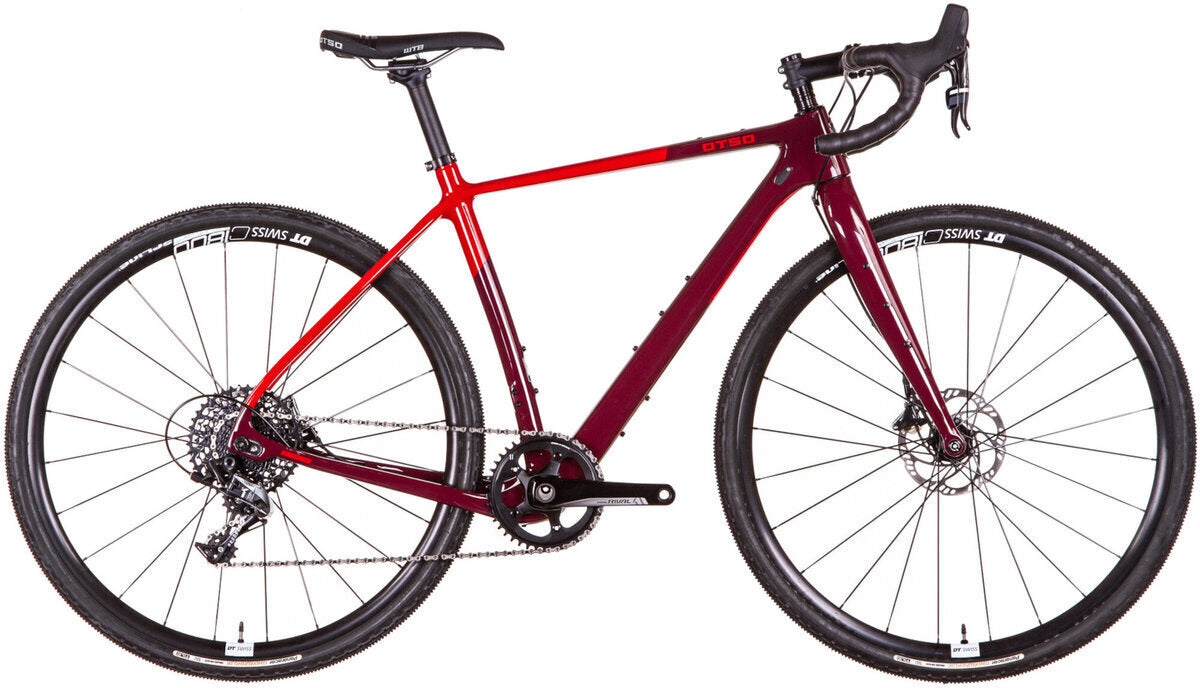

The Waheela C is a carbon-framed drop bar bike with an adjustable geometry, unrivaled ride quality, and enormous tire clearance for 700c x 54mm, 650b x 54mm, or 29" x 2.1" tires. It has extra frame and fork mounting points for bottles and racks, easily accessible internal cable routing options, compatibility for 1x or 2x electronic or mechanical drivetrains, and the ability to run a dropper post. No matter the road ahead (or under tire), the Waheela C is ready.
GIANT TIRE CLEARANCE
ADJUSTABLE GEOMETRY

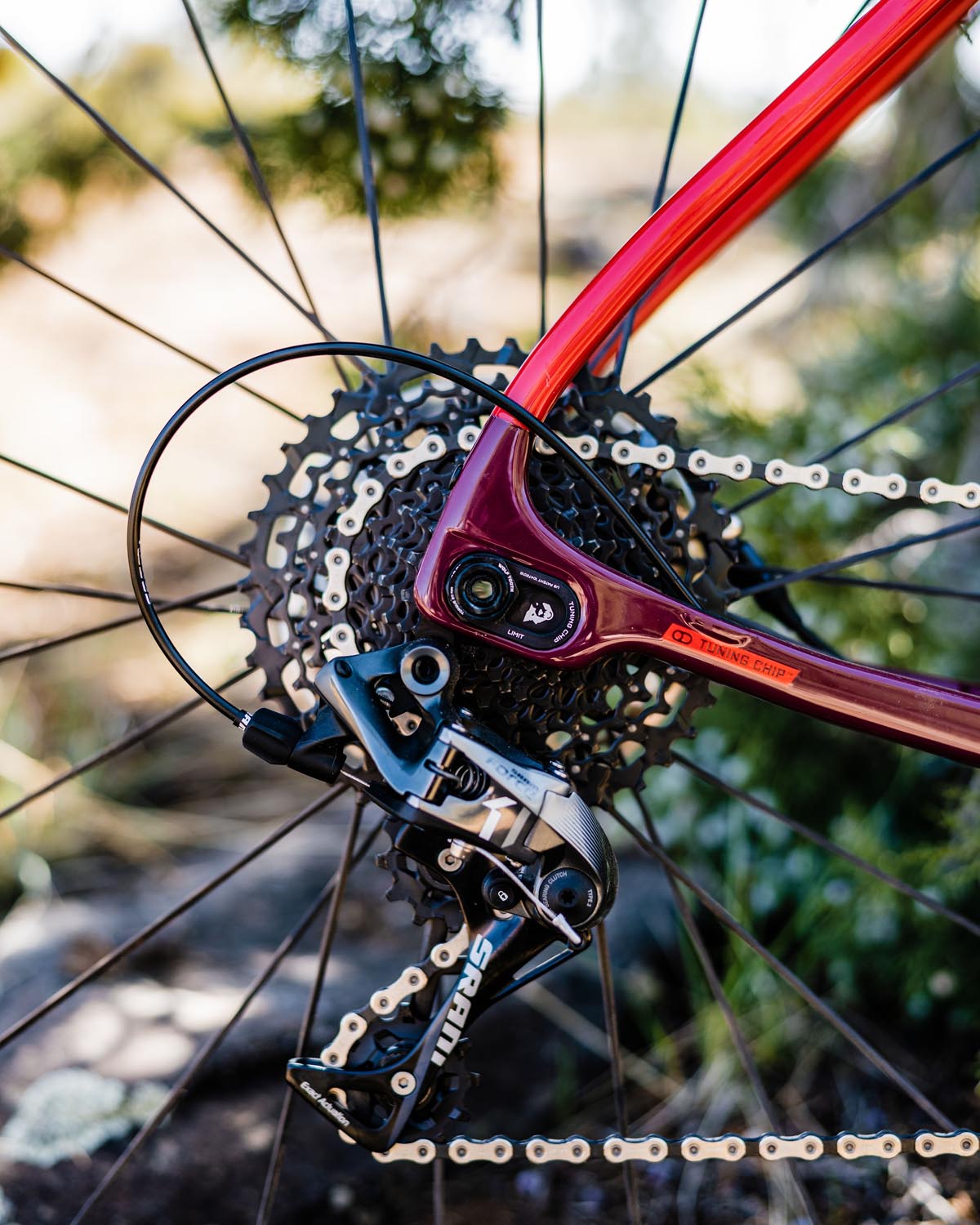

Like all Otso bikes, the Waheela C sports our patented Tuning Chip rear dropout system, which allows you to change the length of your wheelbase and height of your bottom bracket. Put the Tuning Chip in the back position to get the stability and comfort of a longer wheelbase for a full day of riding gravel. Switch to the front position to get the agile handling and responsiveness required by your next CX race. And the middle position? That's the best of both worlds. The adjustable geometry of the Waheela C allows you to ride any road or any trail without needing to switch bikes.
Frame Specs
Bottom bracket standard 68mm BSA threaded
Q-factor 146mm with Shimano 105 crankset
Maximum chainring size 2x 53T round; 1x 50T round or 46T oval
Front derailleur type Braze-On, bottom pull
Headset ZS44/28.6 upper, ZS56 lower
Seatpost diameter Ø30.9mm
Seatpost clamp Ø34.9mm
Front/rear hub standard 100x12mm thru axle / 142x12mm thru axle
Front/rear axle Ø12x100mm front, TP=1.5, TL=15mm / Ø12x180mm rear, TP=1.5, TL=12mm
Derailleur hanger Tuning Chip Right Dropout
Rear brake (rotor) flat mount (160mm)
Front brake (rotor) flat mount (160mm)
Fork axle-to-crown 420mm
Fork offset 47mm
Bare frame weight (M) 1024g
Fork weight (Lithic Hiili 420) 490g
Tire clearance (frame) Clearance for tires up to 53 mm wide in 650b or 29" (most 2.1" tires) at 430/440mm chainstay position
Tire clearance (fork) Max Clearance 29x2.1"
